FD-518 Environmental Testing Chamber
 Environmental Testing Chamber

FD-518

Floor

High Performance icon

FD-518 Models are available in multiple performance levels giving you the rise and pull-down rates you need to meet test requirements and manage live load testing. Built on swivel brake casters, this floor-style environmental test chamber with temperature and humidity functionality still offers flexibility in your lab space or on the production floor.

All large floor models, over 13 cubic feet, are available with escalating performance speeds, for more rate information see specifications below.

The internal workspace walls are type 304 stainless steel for vapor-tight internal construction. The exterior has a durable powder-coat finish over heavy-gauge steel for a long-lasting clean look. And between the two layers, you’ll find highly efficient, low k-factor thermal insulation. This chamber is built to last for many years.

STRUCTURE.  The exterior cabinet design is an engineered sheet metal frame that is precision laser cut and formed with powder coat bone color and matte finish.

CIRCULATION SYSTEM.  Air circulation is crucial for environmental testing. The airflow system has a proprietary baffle/fan design combination to optimize temperature and humidity conditions within the workspace. Air flows into a plenum behind the back wall of the internal workspace for conditioning to the required setpoint. Pushed by large stainless steel blower wheels, air enters the workspace through a four-inch area at the top of the workspace’s back wall. A directional baffle forces the conditioned air across the ceiling toward the front door, redirecting and dispersing the airflow throughout the workspace. An intake vent on the workspace floor along the back wall returns air to the plenum for reconditioning to the precise temperature and humidity.

Variable-speed airflow control is included allowing you to adjust airflow to meet your test requirements and reduce noise.



HEATING SYSTEM.  FD test chambers feature heating systems equipped with several finned nichrome sheath bars that operate independently within the plenum for reliable and accurate temperature control within ±0.5°C.

COOLING SYSTEM. The cooling system in the FD-518 consists of a self-contained, compact, single-stage, mechanical refrigeration system with an air-cooled condenser. An optional water cooling condenser is available.

Add boost cooling with liquid LN2 or CO2 to shorten pull-down times; it's a great option for stress tests that require rapid cooling.

INSTRUMENTATION.  FD Series Test Chambers have incorporated AESONE CONNECT, creating a robust connected device for a standard and uniform interface, making monitoring and operating easier. See the Instrumentation Tab below for more details.

Contact us for quote
Show More...
  • Specifications
  • Standard Features
  • Instrumentation
  • Safety Features
  • Optional Features
  • Downloads

Specifications

FD Series



Illustration of a 6-foot tall man
Height: 72" (6' tall)

FD-218 FD-518

FD-218
Height: 75.5"
Volume: 18 cu. ft.

FD-227 FD-527

FD-527
Height: 75.5"
Volume: 27 cu. ft.

FD-236 FD-536

FD-236
Height: 75.5"
Volume: 36 cu. ft.

FD-248 FD-548

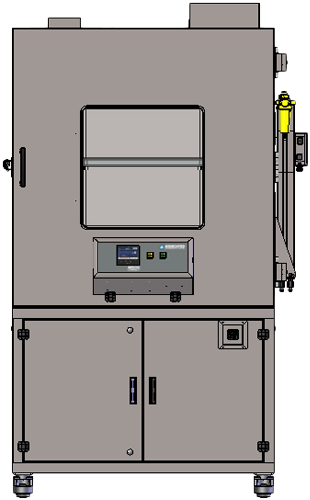

FD-248 Thrust
Height: 94"
Volume: 48 cu. ft.

FD-264 FD-564

FD-264
Height: 94"
Volume: 64 cu. ft.

FD-280 FD-580

FD-280
Height: 94"
Volume: 80 cu. ft.

FD-296 FD-596

FD-296
Height: 94"
Volume: 96 cu. ft.
Interior: 36W x 24D x 36H (in)
  914.4W x 609.5D x 914.4H (mm)
Exterior: 49W x 60D x 82H (in)
  1244.6W x 1524D x 2082.8H (mm)
Volume: 18 cubic ft
  509.7 liters
Temperature: -37°C to 180°C (-34.6°F to 356°F)
Rise Rate*:

↑  6°C/min
↑  8.5°C/min

Pull Down Rate*:

↓  4.5°C/min
↓  6.75°C/min

Electrical Supply:  480 VAC, 3 PH, 60 HZ
Facility Power Receptacle: Hardwired
Refrigeration System:  Single stage
Mobility: Will fit through 48 in doorway

Standard Performance

Temperature Only -40° C to +180° C
Temperature & Humidity -40° C to +180° C

Size
ModelWorking VolumeExterior
FD-518
HD-518
18.0 cu ft (509.73 l)
Interior: 36x24x36 in
49x60x82 in
FD-527
HD-527
27.0 cu ft (764.81 l)
Interior: 36x36x36 in
49x72x82 in
FD-536
HD-536
36.0 cu ft (1,019.46 l)
Interior: 36x48x36 in
49x84x82 in
FD-548
HD-548
48.0 cu ft (1,358.91 l)
Interior: 48x36x48 in
61x80x94 in
FD-564
HD-564
64.0 cu ft (22,251.4 l)
Interior: 48x48x48 in
61x92x94 in
FD-580
HD-580
80.0 cu ft (27,019 l)
Interior: 48x60x48 in
61x104x94 in
FD-596
HD-596
96.0 cu ft (31,788.5 l)
Interior: 48x72x48 in
61x116x94 in

Rate of Change Key
Thrust: up to 3.9°C/min
Impulse: up to 4.0°C/min
Warp: up to 6.5°C/min
Hyperdrive: up to 9.0°C/min

4HP Single Stage
Scroll
Air-Cooled
7.5HP Single Stage
Scroll
Air-Cooled
12HP Single Stage
Scroll or Discus
Water-Cooled
17HP Single Stage
Discus
Water-Cooled
↓ 4.5°C/min
↑ 6.0°C/min
↓ 6.75°C/min
↑ 8.5°C/min


↓ 3.75°C/min
↑ 5.5°C/min
↓ 6.5°C/min
↑ 8.25°C/min


↓ 3.0°C/min
↑ 5.0°C/min
↓ 6.0°C/min
↑ 7.0°C/min


↓ 2.5°C/min
↑ 4.75°C/min
↓ 5.0°C/min
↑ 7.0°C/min
↓ 6.0°C/min
↑ 7.5°C/min
↓ 8.0°C/min
↑ 9.0°C/min
↓ 2.0°C/min
↑ 4.0°C/min
↓ 4.75°C/min
↑ 6.0°C/min
↓ 5.25°C/min
↑ 6.5°C/min
↓ 7.5°C/min
↑ 8.0°C/min
↓ 1.5°C/min
↑ 3.5°C/min
↓ 4.0°C/min
↑ 4.5°C/min
↓ 4.5°C/min
↑ 5.0°C/min
↓ 6.5°C/min
↑ 6.5°C/min
↓ 1.5°C/min
↑ 3.5°C/min
↓ 3.5°C/min
↑ 4.5°C/min
↓ 4.25°C/min
↑ 5.0°C/min
↓ 6.0°C/min
↑ 6.5°C/min

Options:
Water-Cooled or Remote Air-Cooled
Remote Condensing


Options:
Remote Air-Cooled
Remote Condensing
(Scroll Only)


Options:
Remote Air-Cooled

*Rise and pull-down rates calculated using IEC 60068-3-5 standard. Custom options available.

*Ideal ambient temperature conditions for test chambers is 23°C (73.4°F). The temperature and humidity range of assured performance is between 15°C and 25°C (59°F/77°F) and 30-50% relative humidity. Conditions outside this range may affect the performance of your test chamber and reduce the lifespan of the equipment.
