Cylindrical Cell - 48 Channel - 20 Amp

Patented battery testing

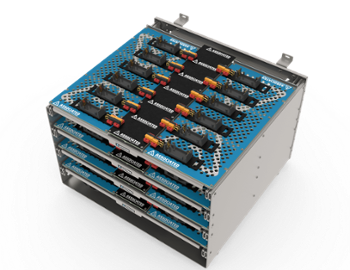

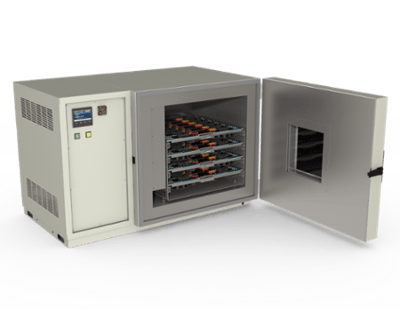

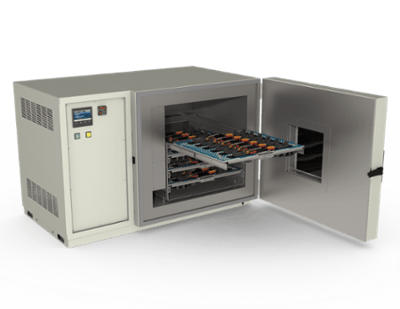

AES' patented ATPPRIME is a battery test fixture designed to hold up to 48 channels over four full-extension shelves. The self-contained fixture fits into a specially engineered environmental test chamber to maximize airflow and keep constant temperature conditions. The Cable Chain keeps wiring organized as shelves slide in and out for seamless cell swapping.

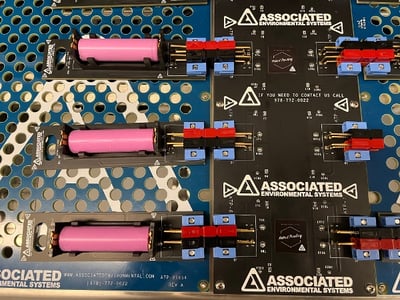

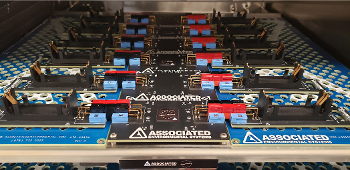

Cylindrical cell holders attach via universal power pole connectors. Gold contacts at connection points ensure you get each cell's best charge and discharge and Kelvin sensing to offer accurate readings for each channel. A two-foot patch cord connects to your battery cyclers interconnect cables for an easy connection.

    Cylindrical holders: 18650, 21,700, 26,650, AAA, AA, C, D, and more
        Temperature Range: -20°C to 80°C (-4°F to +176°F)
            Standard Maximum Current: up to 20 amps, continuous at ambient. Please inquire for higher ampere applications.
              <*Cell holders sold separately>
              Contact us for quote
Show More...

Specifications

Configuration: 12 Channels per shelf - 1-4 Shelves
Channels: 12-48 Channels
Connection Type: Power Pole
Application: Cylindrical Cell
Max Current: 20 Amps
Cable Management: Cable Chain
Temperature Range: -20 °C to 80 °C (-4 °F to 176 °F)
Extended Performance: Inquire for extended performance
