Coin Cell - 48 Channels - 1 Amp Per Channel

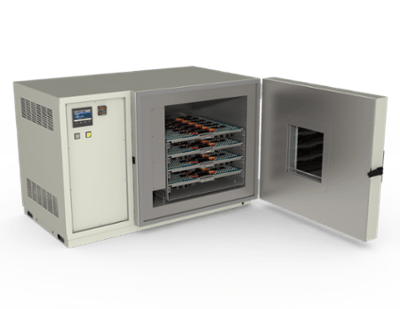

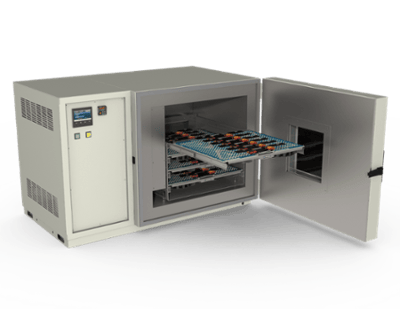

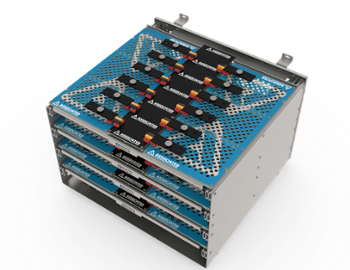

AES' patented ATPPRIME is a battery test system designed to hold up to 48 channels over four full-extension shelves. The self-contained fixture fits into a specially engineered environmental test chamber to maximize airflow and keep constant temperature conditions. The Cable Chain keeps wiring organized as shelves slide in and out for seamless cell swapping.

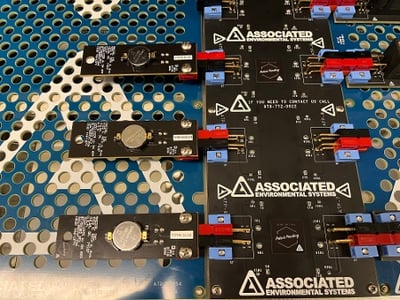

Coin cell holders attach via universal power pole connectors. Gold contacts at connection points ensure you get each cell's best charge and discharge and Kelvin sensing to offer accurate readings for each channel. A two-foot patch cord connects to your battery cyclers interconnect cables for an easy connection.
Temperature Ranges:
- Standard range: -20°C to +80°C (-4°F to +176°F)
- Standard Maximum Current: 1 amp per channel, continuous at ambient. Please inquire for higher amperage applications.
Contact us for quote
Specifications
| Configuration: | 12 Channels per shelf - 1-4 Shelves |
| Channels: | 12-48 Channels |
| Connection Type: | Power Pole |
| Application: | Coin Cell |
| Max Current: | 1 Amps |
| Cable Management: | Cable Chain |
| Temperature Range: | -20 °C to 80 °C (-4 °F to 176 °F) |
| Extended Performance: | Inquire for extended performance |
