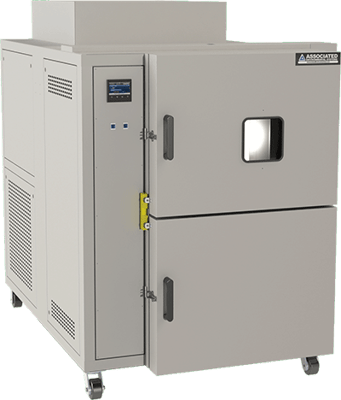

SM-2108D Environmental Testing Chamber
Illustration of man next to  for scale
 Environmental Testing Chamber
Illustration of man next to  for scale

SM-2108D

Floor

TUVRheinland icon

When your product needs to be tested for immediate temperature changes between hot and cold repeatedly, consider a thermal shock test chamber. The SM Series test chamber makes it possible to quickly and autonomously transfer test specimens back and forth.

Used often for the testing of electronics and electronic components in automotive, aerospace and defense industries. With the popularity growth of portable and handheld devices that face extreme outdoor conditions, the use of the SM-2108D has expanded into new industries.

To achieve the rapid change in temperature, your product sits in a pneumatically-controlled basket that travels vertically between two zones within seconds. The exterior chamber construction includes a powder-coat finish over heavy-gauge steel and type 304 stainless steel on the inside. Sandwiched between is a layer of highly-efficient, low K factor, thermal insulation for the highest efficiency and temperature performance.

Each compartment holds your desired temperature with a heated zone and a cold zone. The specially designed basket is a traveling workspace with its own sensor so you can monitor not only the environmental condition in each zone but also the temperature of the specimen and recovery time. When you need to cool your specimen even faster, an optional liquid LN2 or CO2 boost can be added. View a video of the SM Series Thermal Shock Chamber in action here.

A third zone can be added between the hot and cold zones for ambient temperature exposure.

Cooling differences between 2100 models and 9100 models

  • 2100 models are cooled with a cascade mechanical refrigeration system. An LN2 boost option can be added to cool even faster.
  • 9100 models use liquid nitrogen to reach cold temperatures. There is no mechanical refrigeration.

The most common thermal shock tests incorporate MIL-STD-883K and MIL-STD-202H, and the SM Series test chamber can achieve all of the tests required under these two test conditions. See the typical application tab below for detailed information about reaching these test standards in a SM Thermal Shock Test Chamber.

INSTRUMENTATION. SM-2108D Test Chamber incorporates AESONE CONNECT creating a robust connected device giving you a standard and uniform interface that makes operation easier. Learn more in the Instrumentation Tab below.

Contact us for quote
Show More...
  • Applications
  • Specifications
  • Standard Features
  • Instrumentation
  • Safety Features
  • Optional Features
  • Downloads
  • Videos

Applications

MIL-STD 883K Method 1010.9

The images below specify the test conditions the SM Thermal Shock test chamber can achieve under the military and aerospace conditions to adhere to the uniform method for thermal shock testing of microelectronic devices within electronic systems. These devices include monolithic, multi-chip, film and hybrid microcircuits, microcircuit arrays, and the elements from which the circuits and arrays are formed.
MIL-STD-883K-Tables
temp cycling 883K Military testing standard 883K method 1010.9 condition C

MIL-STD 202H Method 107

SM Thermal Shock test chambers are designed to meet Method 107 test conditions A, B, and F when testing electronic and electrical component parts such items as capacitors, resistors, switches, relays, transformers, inductors, and such at weights of 10 or 5 pounds, see images below.

The test method should apply only to small component parts, weighing up to 300 pounds or having a root mean square test voltage up to 50,000 volts unless otherwise specified.
MIL-STD-202H-Table
temp-cycling-202H temp cycling Military testing standard 202H method 107 condition F



Specifications

SM Series



Illustration of a 6-foot tall man
Height: 72" (6' tall)

SM-2102D

SM-1902D

SM-2102D
Height: 57"
Volume: 2 cu. ft.

SM-2105D

SM-1905D

SM-2105D
Height: 67"
Volume: 5 cu. ft.

SM-2108D

SM-1908D

SM-2108D
Height: 74"
Volume: 8 cu. ft.
Carriage Dimensions: 20W x 20D x 20H (in)
  508W x 508D x 508H (mm)
Basket Dimensions: 17.5W x 19.7D x 2H (in)
  444.5W x 500.3D x 50.8H (mm)
Exterior: 65W x 90D x 74.0H (in)
  1651W x 2286D x 1879.6H (mm)
Volume: 8.00 cubic ft
  226.53 liters
Hot Zone Temperature: Above Ambient* to +200ºC (Above Ambient* to +392ºF)
Cold Zone Temperature: -70ºC to +121ºC (-85ºF to +250ºF)
Thermal Load Capacity: 15.0 lbs
  6.8 kg
Temperature: -70°C to 121°C (-85°F to 250°F)
Electrical Supply:  208 VAC, 3 PH, 60 HZ
Full Load Amps: 120 A
Facility Power Receptacle: Hardwired
Refrigeration System:  7-1/2 HP X 7-1/2 HP Cascade, Local Air Cooled Condenser
Mobility: Will fit through 62 in doorway
Approximate Product Weight: 1350.0 lbs (612 kg) without added options
Approximate Shipping Weight: 1460.0 lbs (662 kg) without added options

*Rise and pull-down rates calculated using IEC 60068-3-5 standard. Custom options available.

*Ideal ambient temperature conditions for test chambers is 23°C (73.4°F). The temperature and humidity range of assured performance is between 15°C and 25°C (59°F/77°F) and 30-50% relative humidity. Conditions outside this range may affect the performance of your test chamber and reduce the lifespan of the equipment.

Standards MIL-STD 883 K MIL-STD 2020H

Basket Weight by Test Method

Tests A, B: 15 lbs (6.8 kg)

Tests C: 10 lbs (4.54 kg)

Test D: Consult Factory

Tests E: 5 lbs (2.3 kg)

Tests A, B: 10 lbs (4.54 kg)

Tests C, D, E: Consult Factory

Tests F: 5 lbs (2.3 kg)



Hot zone minimum achievable temperature is ambient plus +40ºC to +50ºC (+104ºF to +122ºF), variability based on ambient room conditions, cold zone temperature, DUT load, etc.
