SCH-508-4-ATP
BenchtopRack and Stack
The SCH-508-4-ATP, also known as the Super 508, is the most powerful temperature and humidity benchtop test chamber in the world and is specifically designed with rear wall ports to connect your battery cables to your cycler. The SCH-508-4-ATP can seamlessly integrate with our ATP® (All Test Platform) battery testing fixtures.

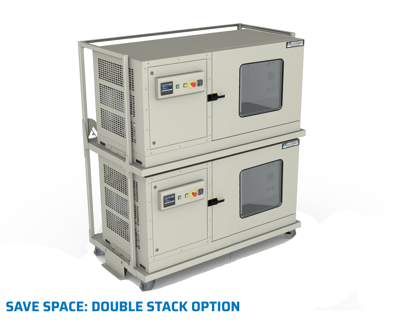

If you are concerned about losing your lab counter space, this test chamber has an optional floor stand for one chamber, or get double the test workspace when you stack two SCH test chambers in the same footprint.
STRUCTURE. The internal workspace is lined with type 304 stainless steel for a vapor-tight internal construction. Two specialized ports allow for cable patches to feed through the back of the test chamber workspace and easily connect to your battery cycler test equipment.
The exterior has a durable powder-coat finish over heavy-gauge steel for a long-lasting clean look. Between the two layers is highly-efficient, low k-factor, thermal insulation. This chamber is built to last for many years.
HEATING SYSTEM. SCH test chambers feature heating systems equipped with stainless steel tubular fin heaters for reliable and accurate temperature control within ±0.5°C.
HUMIDITY SYSTEM. The humidity system has a standard range between 10% and 95%. To extend your humidity range, see the optional features section. View RH Chart.
COOLING SYSTEM. The cooling system in the SCH-508-ATP consists of a self-contained mechanical refrigeration system with a single stage configuration and an air-cooling condenser. An optional water-cooled condenser is available.
Add boost cooling with liquid LN2 or CO2 for even faster pull-down rates. It's a great option for stress tests that require rapid cooling.
Even without boost cooling, AES’ standard refrigeration systems have the fastest standard change rates of any environmental test chamber manufacturer. See the Basic Specifications tab below.
INSTRUMENTATION. SCH-508-4-ATP Test Chamber incorporates AESONE CONNECT® creating a robust connected device giving you a standard and uniform interface that makes operation easier. Learn more in the Instrumentation Tab below.
- Specifications
- Standard Features
- Instrumentation
- Safety Features
- Optional Features
- Downloads
Specifications
SCH Series
| Interior: | 24W x 24.1D x 25.8H (in) |
| 609.5W x 612.1D x 655.3H (mm) | |
| Exterior: | 70W x 38D x 36H (in) |
| 1778W x 965.2D x 914.4H (mm) | |
| Volume: | 8.64 cubic ft |
| 244.65 liters | |
| Temperature: | -37°C to 180°C (-34.6°F to 356°F) |
| Humidity: | 10-95% RH, limited by +4°C Td (for 98% add option) |
| Humidity Fluctuation: | ±2% RH at sensor |
| Rise Rate*: | 5°C/min |
| Pull Down Rate*: | 5°C/min |
| Electrical Supply: | 208 VAC, 1 PH, 60 HZ |
| Full Load Amps: | 50 A |
| Facility Power Receptacle: |
6' cord with 2-Pole 3-Wire Grounding, Non-NEMA, Twist lock plug. CATALOG# CS8265C
|
| Refrigeration System: | Single stage |
| Mobility: | Will fit through 48 in doorway |
| Approximate Product Weight: | 845 lbs (383 kg) without added options |
*Rise and pull-down rates calculated using IEC 60068-3-5 standard. Custom options available.
*Ideal ambient temperature conditions for test chambers is 23°C (73.4°F). The temperature and humidity range of assured performance is between 15°C and 25°C (59°F/77°F) and 30-50% relative humidity. Conditions outside this range may affect the performance of your test chamber and reduce the lifespan of the equipment.
Standard Features
STANDARD FEATURES
- Temperature range: -37°C to 180°C (-34.6°F to +356°F)
- External cabinet construction consists of heavy-gauge, cold-rolled steel with powder coat, bone color, and textured matte finish
- Exterior light with exterior switch on cabinet face
- Port configuration: Two rear wall access port and plug with 4in (76.2mm) diameter for ATP fixture and four 2in (50.8mm) diameter rear wall ports for additional sensors
- 20” x 20” Heated Multi Pane Viewing Window
- Fully opening door and manual door latch
- Fully adjustable shelf, 1 wire-grid shelf, stainless steel
- Gas Inlet compatible with GN2 Purge and Dry Air Purge
Instrumentation
STANDARD INSTRUMENTATION
CONTROLLER
SCH Series Test Chambers have incorporated AESONE CONNECT® creating a robust connected device for a standard and uniform interface making test chamber remote monitoring easier.
AESONE XCHANGE is hardware internal to the chamber that increases your functionality
- Connects the test chamber controller to your network for increased accessibility
- On-board multi-year data logging
AESONE SOFTWARE gives you the power to
- Remote chamber operation and monitoring,
- Web-based test profile creation,
- Viewing current data and historical data visually
- Secure multi-level user access
ADDITIONAL ONBOARD INSTRUMENTATION
WATLOW F4T PROGRAMMABLE CONTROLLER. Features a 4.3” capacitive touchscreen minimizing the chance for error. Ethernet communication supported by AESONE HARDWARE. View more controller options
SENSORS.
- TEMPERATURE SENSOR. Measured at the point of airflow entering the workspace. Class A, 3-wire, 100 Ohm Platinum RTD sensor
- Solid-State Humidity Sensor
OPTIONAL DATA LOGGERS. View additional data loggers
Safety Features
STANDARD SAFETY FEATURES
Optional Features
OPTIONAL FEATURES
- Shelf Modification
- Custom Porting Sizes
- Custom window size
- LN2 Boost Cool
- CO2 Boost Cool
- Self Contained Water Recirculating System
- Water Demineralizer Cartridge System
- High Humidity Sensor to extend the humidity range up to 98% RH
- Desiccant Air Dryer to reach conditions as low as 5% RH
- Floor Stand with Casters
