SC-508-4-SAFE
BenchtopRack and Stack

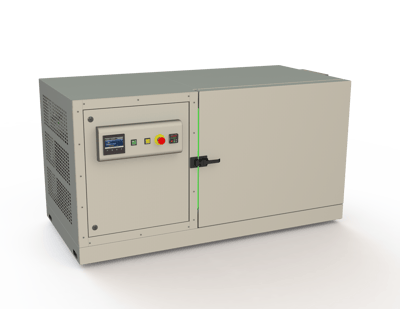

The SC-508-4-SAFE, also known as the Super 508, is the most powerful temperature-only benchtop test chamber in the world and is specifically designed with AES SAFE battery safety features to keep you safe up to EUCAR Hazard Level 7. The SC-508-4-SAFE can seamlessly integrate with our ATP® (All Test Platform) battery testing fixtures.

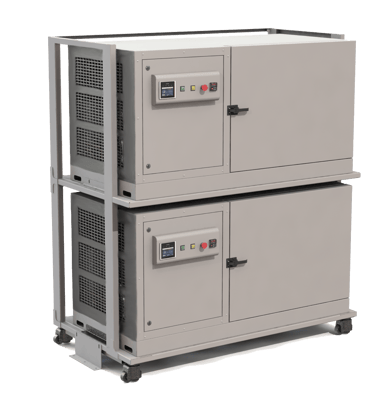

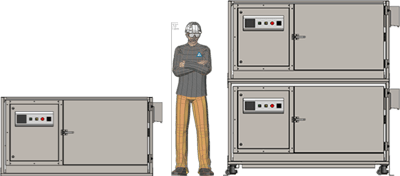

If you are concerned about losing your lab counter space, this test chamber has an optional floor stand for one chamber, or get double the test workspace when you stack two SC test chambers in the same footprint.
BATTERY SAFETY FEATURES The SC-508-4-SAFE is equipped with all the safety features needed to keep your lab safe. See safety features tab below.
STRUCTURE. The internal workspace is lined with type 304 stainless steel for a vapor-tight internal construction. Two specialized ports allow for cable patches to feed through the back of the test chamber workspace and easily connect to your battery cycler test equipment.
The exterior has a durable powder-coat finish over heavy-gauge steel for a long-lasting clean look. Between the two layers is highly efficient, low k-factor, thermal insulation. This chamber is built to last for many years.
CIRCULATION SYSTEM. Air circulation is crucial for environmental testing. The SC and SCH series has an increased air flow with two 1/3 horsepower motors and blower wheels with adjustable speed. This optimizes temperature conditions within the workspace for the ATPHEAVY battery fixture.
HEATING SYSTEM. SC test chambers feature heating systems equipped with temperature limited sheath heaters to maximize safety and performance for reliable and accurate temperature control within ±0.5°C.
COOLING SYSTEM. The cooling system in the SC and SCH series consists of a self-contained mechanical refrigeration system with a single stage configuration, and a 3.5 HP scroll compressor. An optional water-cooled condenser is available.
Add boost cooling with liquid LN2 or CO2 for even faster pull-down rates. It's a great option for stress tests that require rapid cooling.
Even without boost cooling, AES’ standard refrigeration systems have the fastest standard change rates of any environmental test chamber manufacturer. See Basic Specifications tab below.
INSTRUMENTATION. SC-508-4-SAFE Test Chamber incorporates AESONE CONNECT creating a robust connected device giving you a standard and uniform interface that makes operation easier. Learn more in the Instrumentation Tab below.
- Specifications
- Standard Features
- Instrumentation
- Safety Features
- Optional Features
- Downloads
Specifications
SC Series
| Interior: | 24W x 24.1D x 25.8H (in) |
| 609.5W x 612.1D x 655.3H (mm) | |
| Exterior: | 76.2W x 40.3D x 36H (in) |
| 1935.5W x 1023.7D x 914.4H (mm) | |
| Volume: | 8.64 cubic ft |
| 244.65 liters | |
| Temperature: | -37°C to 180°C (-34.6°F to 356°F) |
| Pull Down Rate*: | 5°C/min |
| Electrical Supply: | 208 VAC, 1 PH, 60 HZ |
| Full Load Amps: | 50 A |
| Facility Power Receptacle: |
6' cord with 2-Pole 3-Wire Grounding, Non-NEMA, Twist lock plug. CATALOG# CS8265C
|
| Refrigeration System: | Single stage |
| Mobility: | Will fit through 48 in doorway |
| Approximate Product Weight: | 850 lbs (385 kg) without added options |
*Rise and pull-down rates calculated using IEC 60068-3-5 standard. Custom options available.
*Ideal ambient temperature conditions for test chambers is 23°C (73.4°F). The temperature and humidity range of assured performance is between 15°C and 25°C (59°F/77°F) and 30-50% relative humidity. Conditions outside this range may affect the performance of your test chamber and reduce the lifespan of the equipment.
Standard Features
STANDARD FEATURES
- Temperature range: -37°C to 180°C (-34.6°F to +356°F)*Dependent on lowest auto-ignition temperature (AIT) of any possible gasses present during testing
- External cabinet construction consists of heavy-gauge, cold-rolled steel with powder coat, bone color, and textured matte finish
- Interior cabinet constructed with type 304 stainless steel
- Exterior light with exterior switch on cabinet face and operable on AESONE CONNECT
- Port configuration: Two rear wall access port and plug with 4in (76.2mm) diameter for ATP fixture and four 2in (50.8mm) diameter rear wall ports for additional sensors
- Equipped with AES SAFE Battery Safety Features. Safe up to EUCAR Hazard Level 7. A full list of included safety features is listed in the safety features tab.
Instrumentation
STANDARD INSTRUMENTATION
CONTROLLER
SC Series Test Chambers have incorporated AESONE CONNECT® creating a robust connected device for a standard and uniform interface making test chamber remote monitoring easier.
AESONE XCHANGE is hardware internal to the chamber that increases your functionality
- Connects the test chamber controller to your network for increased accessibility
- On-board multi-year data logging
AESONE SOFTWARE gives you the power to
- Remote chamber operation and monitoring,
- Web-based test profile creation,
- Viewing current data and historical data visually
- Secure multi-level user access
ADDITIONAL ONBOARD INSTRUMENTATION
WATLOW F4T PROGRAMMABLE CONTROLLER. Features a 4.3” capacitive touchscreen minimizing the chance for error. Ethernet communication supported by AESONE HARDWARE. View more controller options
SENSORS
- TEMPERATURE SENSOR. Measured at the point of airflow entering the workspace. Class A, 3-wire, 100 Ohm Platinum RTD sensor
OPTIONAL DATA LOGGERS. View additional data loggers
Safety Features
STANDARD SAFETY FEATURES
Optional Features
OPTIONAL FEATURES
- Shelf Modification
- Custom Porting Sizes
- LN2 Boost Cool
- CO2 Boost Cool
- Desiccant Air Dryer to reach conditions as low as 5% RH
- Gas Purge compatible with Dry Nitrogen (GN2) & Compressed Dry Air (CDA)
- Floor Stand with Casters
- Single Gas Sensor
- Dual Gas Sensor
- Triple Gas Sensor
- Large Burst Disk Upgrade
- Additional Thermocouples
