TUV 61010-1 Certified Chambers
Associated Environmental Systems has the largest number of TUV certified chambers in the industry.
Associated Environmental Systems (AES) proudly offers the largest number of TUV-certified environmental test chambers in the industry.
AES provides seven test chamber series certified under the UL 61010-1 standard, ensuring adherence to rigorous safety standards for electrical equipment used in measurement, control, and laboratory settings. Our UL 61010-1 certification covers all AES benchtop and small floor model temperature and humidity chambers up to 13 cu ft, guaranteeing safety and reliability across various environments. Our UL 508A certification ensures that electric panels meet the stringent standards set by UL and ANSI for larger, hardwired test chambers.
Since 1959, AES has been a leader in designing, manufacturing, and supporting both standard and custom environmental test chambers tailored to meet our customers' most demanding requirements. Our expansive product line of environmental test chambers simulates extreme temperature variations, humidity conditions, and salt spray and are even optimized for battery testing. Over the years, we have built a loyal customer base across diverse industries such as aerospace, semiconductors, battery testing, medical devices, and many other industries worldwide.
When choosing AES, customers can trust that they are receiving the safest and most reliable products with TUV Rheinland certification. Our TUV-certified chambers, including the LH, SD, SC, SCH, BHD series, and our FD and HD series under 13 cu ft, undergo thorough inspections and regular factory updates to meet strict safety standards.
Temperature & Humidity Chambers
LH-Series
The LH Series
This benchtop test chamber meets the needs of even the smallest-scale product testing while ensuring quality throughout the entire process. Its temperature range is -20°C to +94°C (-4°F to +201.2°F), and its tightly controlled relative humidity range is 10% to 95% (98% with added options).
BHD-Series
The BHD Series are our standard temperature and humidity benchtop environmental test chambers. BHD chambers can also be optimized for battery testing. SAFE models have up to EUCAR hazard level 7 safety features.
BHD environmental test chambers can produce a wide temperature range, from -70°C to +180°C (-94°F to +356°F). BHD chambers include a humidity capability with levels anywhere between 10% and 95% (± 2%) relative humidity (98% can be achieved with added options).
AES' custom-designed inner-baffle design, along with the tightly controlled steam generator, allows for airflow consistency and highly accurate environmental testing on your product.
SCH-Series
The SCH Series is the most powerful benchtop humidity chamber in the world. Its larger compressor achieves a rise and pull-down rate of 5°C per minute, reaching extreme temperature variation faster and staying there longer. SCH chambers can also be optimized for battery testing. SAFE models have up to EUCAR hazard level 7 safety features.
SCH environmental test chambers can produce a wide temperature range, from -37°C to +180°C (-34.6°F to +356°F). SCH humidity ranges anywhere between 10% and 98% (± 2%) relative humidity (98% can be achieved with added options).
HD-Series
The HD Series are our standard temperature and humidity floor model environmental test chambers. HD chambers include a humidity capability with levels anywhere between 10% and 98% (± 2%) relative humidity.
BHD environmental test chambers can produce a wide temperature range, from -70°C to +180°C (-94°F to +356°F).
AES' custom-designed inner-baffle design, along with the tightly controlled steam generator, allows for airflow consistency and highly accurate environmental testing on your product.
*NOTE: Only our HD 13 cu ft and under models are TUV-61010 certified. 13 cu ft and up models are UL508A certified.
Temperature Chambers
SD-Series
The SD Series are our standard temperature-only benchtop environmental test chambers. SD chambers can also be optimized for battery testing. SAFE models have up to EUCAR hazard level 7 safety features.
SD environmental test chambers can produce a wide temperature range, from -70°C to +180°C (-94°F to +356°F).
AES' custom-designed inner-baffle design increases temperature stability and maintains even air circulation. This airflow consistency allows for highly accurate environmental testing of your product.

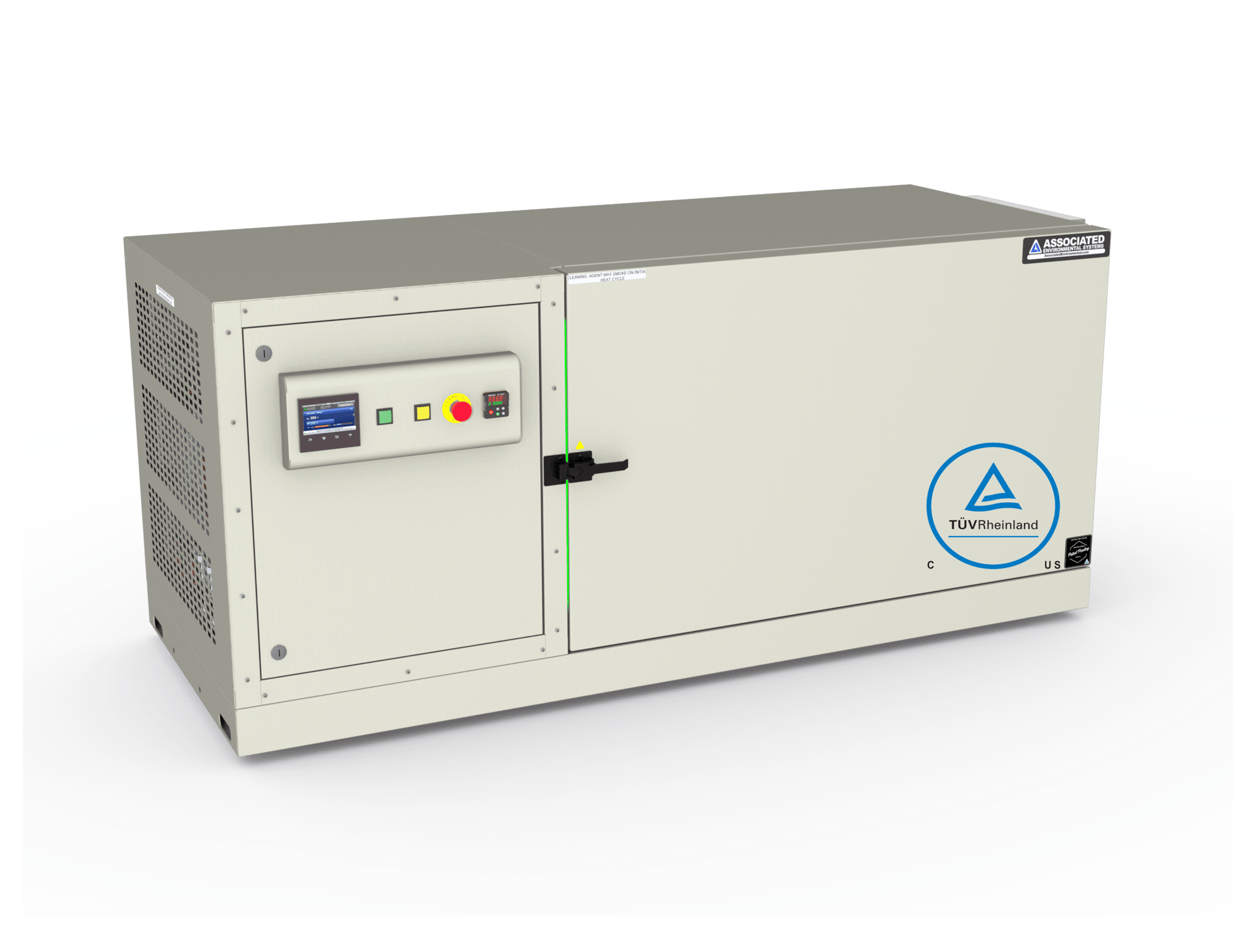

SC-Series
The SC Series is the most powerful benchtop humidity chamber in the world. Its larger compressor achieves a rise and pull-down rate of 5°C per minute, reaching extreme temperature variation faster and staying there longer. SCH chambers can also be optimized for battery testing. SAFE models have up to EUCAR hazard level 7 safety features.
SCH environmental test chambers can produce a wide temperature range, from -37°C to +180°C (-34.6°F to +356°F).
FD-Series
The FD Series are our standard temperature-only floor model environmental test chambers.
SD environmental test chambers can produce a wide temperature range, from -70°C to +180°C (-94°F to +356°F).
AES' custom-designed inner-baffle design increases temperature stability and maintains even air circulation. This airflow consistency allows for highly accurate environmental testing of your product.
*NOTE: Only our FD 13 cu ft and under models are TUV-61010 certified. 13 cu ft and up models are UL508A certified.
