Cylindrical Cell - 16 Channels - 60 Amp
AES' patented ATPPRIME is a battery test fixture designed to hold up to 16 channels over two full-extension shelves. The self-contained fixture fits into a specially engineered environmental test chamber to maximize airflow and keep constant temperature conditions. IGUS track ensures wiring stays in place when shelves are moved and batteries are switched out.

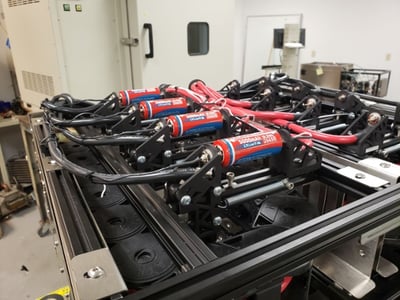

Cylindrical cells mounted to 80/20 aluminum extrusion that can be repositioned for precise tension. Each battery cell is suspended in the workplace creating clearance for a variety of cylindrical battery sizes. A two-foot patch cord connects to your battery cyclers interconnect cables for an easy connection.
- Cylindrical Cell Holders*: 18650, 21,700, 26,650, AAA, AA, C, D, others
- Temperature Range: -20°C to 80°C (-4°F to +176°F)
- Standard Maximum Current: up to 60 amps, continuous at ambient. Please inquire for higher ampere applications.
Contact us for quote
Specifications
| Configuration: | 16 Channels per shelf - 1-4 Shelves |
| Channels: | 8-16 Channels |
| Connection Type: | Direct Wired |
| Application: | Cylindrical Cell |
| Max Current: | 60 Amps |
| Cable Management: | IGUS Track |
| Temperature Range: | -20 °C to 80 °C (-4 °F to 176 °F) |
| Extended Performance: | Inquire for extended performance |
