Power Pole - 6x12

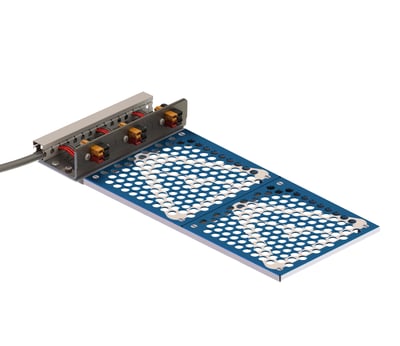

AES' ATPFLEX battery test fixture designed for portability and integration into any environmental test chamber. For battery testing coin cell or cylindrical, the ATPFLEX cell boards have a three-channel configuration. Connection points are secure from the test surface to the cell holder and connectors through fixed wiring to your battery cycler.
Test surfaces mounted to the channels and give you a secure, flat, non-conductive test surface. The surfaces are available in various sizes to fit your battery cell shape. The perforated surface enables airflow for optimal air circulation and thermal uniformity.

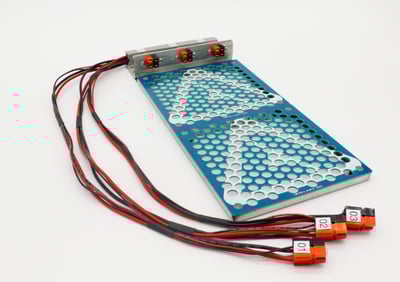

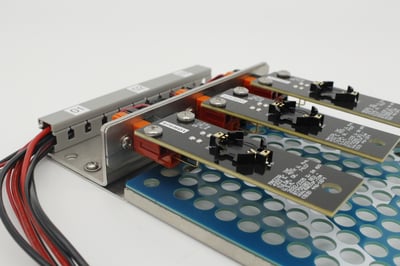

Cylindrical or coin cell holders attach via universal power pole connectors. Gold contacts at connection points ensure you get the best charge and discharge of each cell and Kelvin sensing, or four-terminal wire sensing, offer accurate readings for each channel. An approximately two-foot pigtail connects the channels to your battery cycler interconnect cables which plug into your battery cycler.
- Cell Holders*
Cylindrical holders: 18650, 21,700, 26,650, AAA, AA, C, D, others
Coin cell holders: 2032, others
Product Overall Dimensions: 6.0W X 15.0D X 1.5H in (152.4W X 381.0D X 38.1H mm)
Test Surface Dimensions: 6.0W X 12.0D in (152.4W X 304.8D mm)
Temperature Range: -20°C to 80°C (-4°F to +176°F)
Standard Maximum Current: up to 20 amps, continuous at ambient. Please inquire for higher amperage applications.
- *Cell holders sold separately
Specifications
| Configuration: | 6x12 |
| Channels: | 2-6 Channels |
| Connection Type: | Power Pole |
| Application: | Cylindrical Cell, Coin Cell |
| Max Current: | 20 Amps |
| Cable Management: | Cable Raceway |
| Temperature Range: | -20 °C to 80 °C (-4 °F to 176 °F) |
| Extended Performance: | Inquire for extended performance |
