POUCH CELL - 6 CHANNELS - 250 AMP

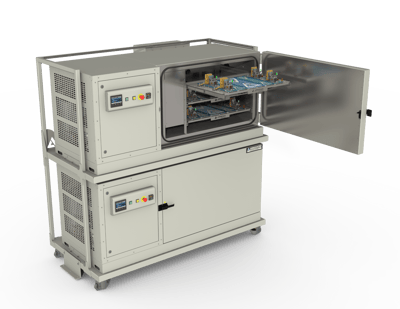

AES' patent-pending ATPHEAVY ADAPTABLE is a battery test fixture designed to accommodate battery testing up to 250 amps. The self-contained fixture fits into a specially engineered environmental test chamber to maximize airflow and keep constant temperature conditions. This ATPHEAVY ADAPTABLE fixture comes standard with the ability to handle up to 6 high amperage batteries.
ATPHEAVY is configured to provide safe and easy placement of multiple, high amperage batteries into an environmental test chamber with three fully extending shelves. The ATPHEAVY ADAPTABLE combines multiple components critical for battery testing into a scalable, safe, high-density battery testing platform.
Large Pouch Cell holders
- Temperature Range: -20°C to 80°C (-4°F to +176°F)
Standard Maximum Current: up to 250 amps, continuous at ambient. Please inquire for higher amperage applications.
Buy $21,125 (base price)
Specifications
| Configuration: | 2 Channels per shelf 1-3 Shelves |
| Channels: | 2-6 Channels |
| Connection Type: | Buss Bar |
| Application: | Pouch Cell |
| Max Current: | 250 Amps |
| Cable Management: | IGUS Track |
| Temperature Range: | -20 °C to 80 °C (-4 °F to 176 °F) |
| Extended Performance: | Inquire for extended performance |
