Prismatic And Pouch Cell - 48 Channels - 20 Amp

Overview

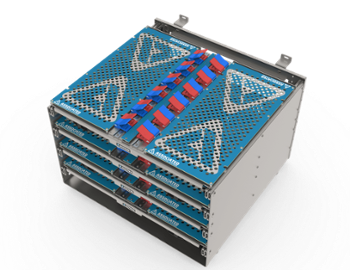

AES' patented ATPPRIME is a battery test fixture designed to hold up to 48 channels over four full-extension shelves. The self-contained fixture fits into a specially engineered environmental test chamber to maximize airflow and keep constant temperature conditions. IGUS track ensures wiring stays in place when shelves are moved and batteries are switched out.

Pouch cells connect via two separate spring-loaded clips. Gold contacts at connection points ensure you get the best charge and discharge of each cell and Kelvin sensing, or four-terminal wire sensing, offer accurate readings for each channel. A two-foot patch cord connects to your battery cyclers interconnect cables for an easy connection.

Temperature Ranges:

Standard range: -20°C to +80°C (-4°F to +176°F) Optional extended range -40°C to +150°C (-40°F to +302°F)

Standard Maximum Current: up to 20 amps, continuous at ambient. Please inquire for higher ampere applications.
